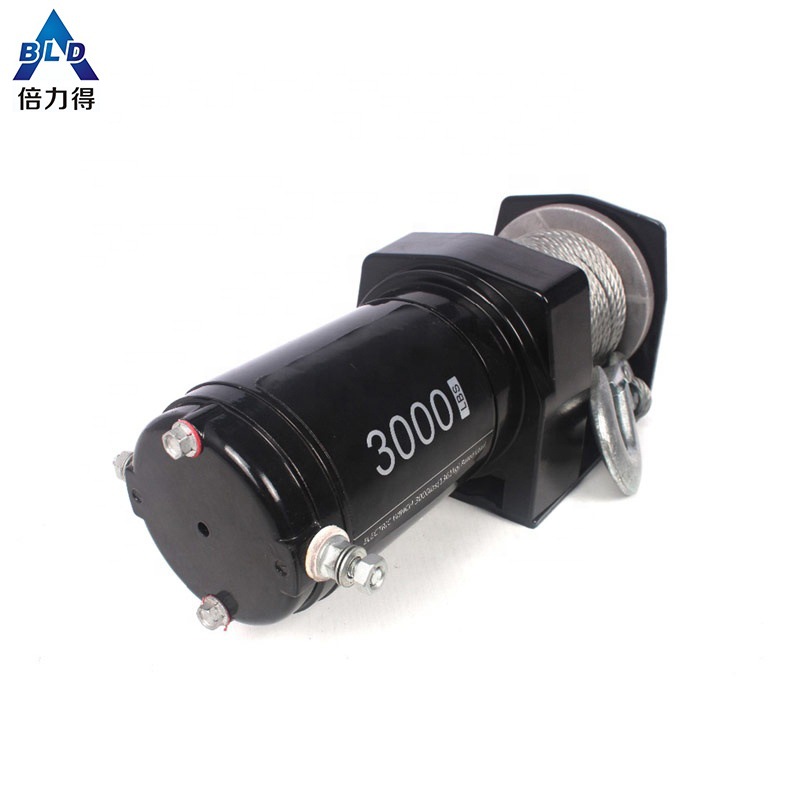

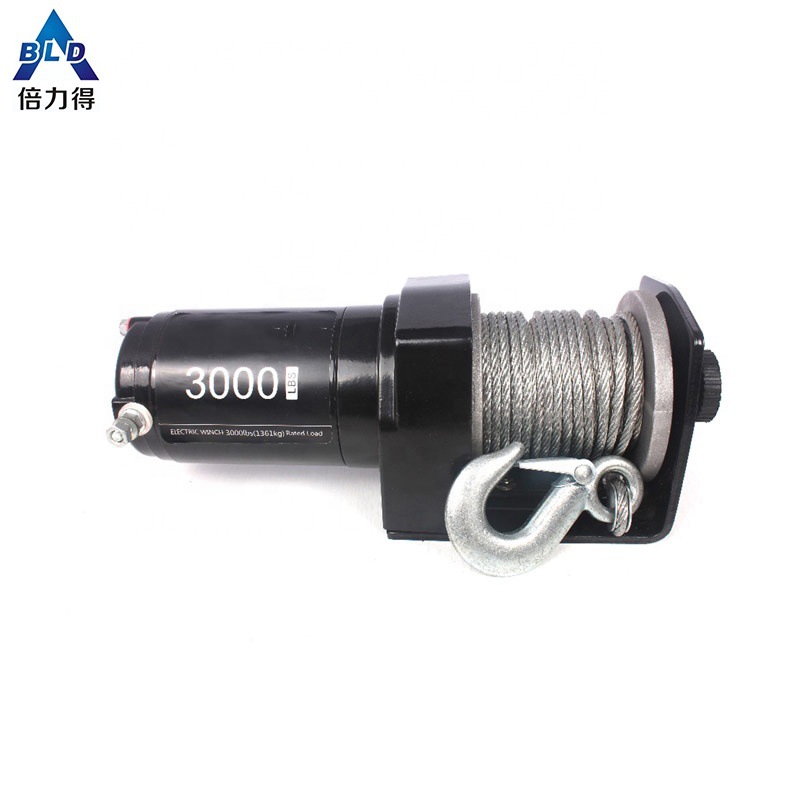

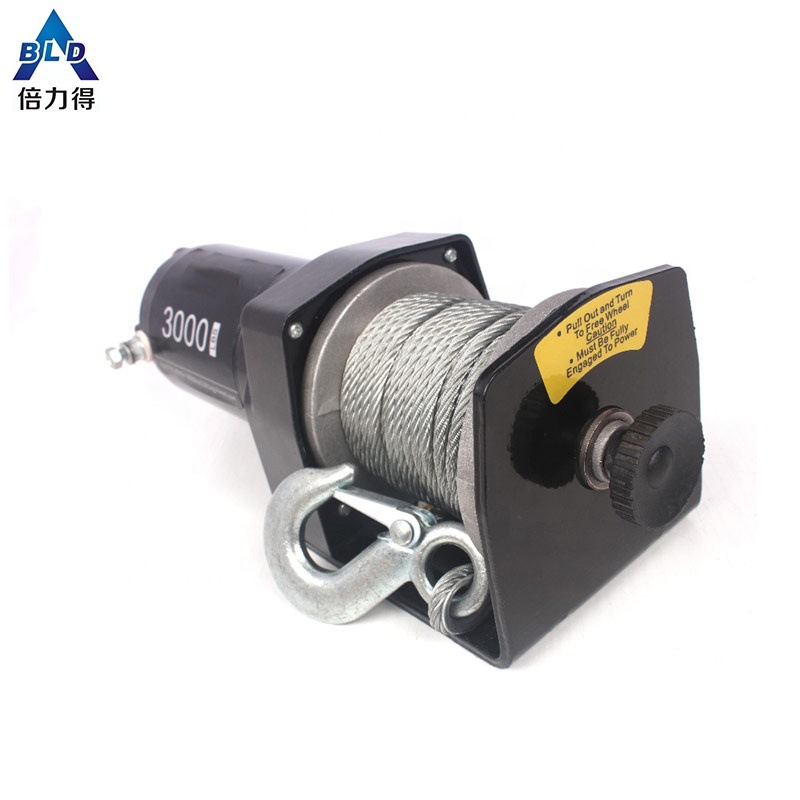

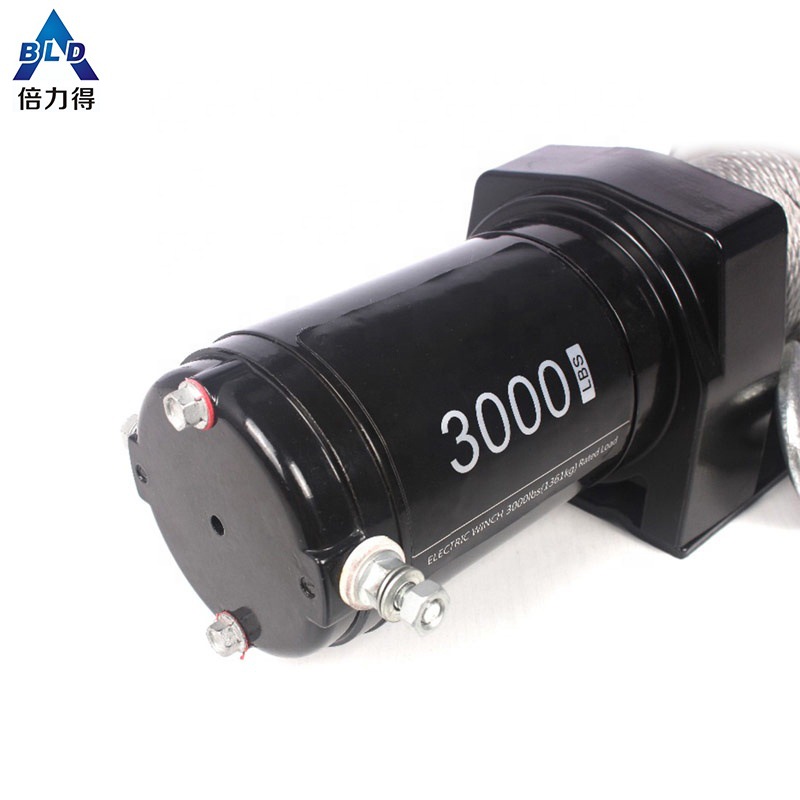

Electric Winch 3000lbs Electric Winch Rescue Vehicle With Car Special ATV12V/24V Wire Rope

Properties

Place of origin: Taizhou, Zhejiang    Whether imported or not:NO    Order No. :BLD3000           Brand: BLD                                      Model:BLD3000                                Item No. :BLD3000                      Motor: 12V/24V                  Processing customization:NO        Voltage:12V/24V                              Pulling force:1361KG                  Type:electric                         Overall Dimension:355 x 265 x 170mm

Rope length :10.5(m)                       Weight:9(kg)                                Motor power:12V/24V        Working load: 12V/24V

Tooth speed ratio :No                     Breaking strength:3000LBS        Wire rope diameter and length:4.8mmx10.5m

Size :355 x 265 x 170mm                 Material :A36                               Net weight :9KG

Whether cross-border export exclusive source: No

Description

Product Specification：

Rated line pull:3000lbs(1361kgs) single line
Motor:Permanent magnet,1.1kw/1.4hp
Gear reduction ratio:150：1
Gear train:Differential Planetary
Cable (Dia x L):Ø4.8mmx10.5m
Drum size (Dia x L):Ø1.24”(31.5mm) x2.8”(72mm)
Braking action:Automatic In-The-Drum
Overall dimensions(L x W x H):299mm X100mm X105mm
Mounting bolt pattern:76mm, Ø8.5
Weight:N.W.8kg G.W.9kg
Packing size:355 x 265 x 170mm 1PC/CTN
