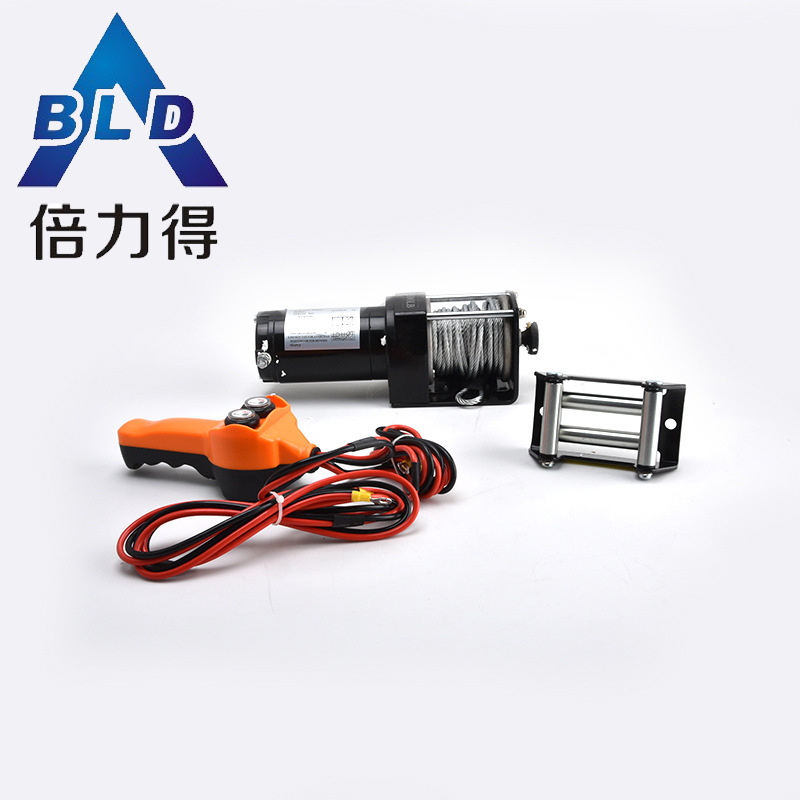

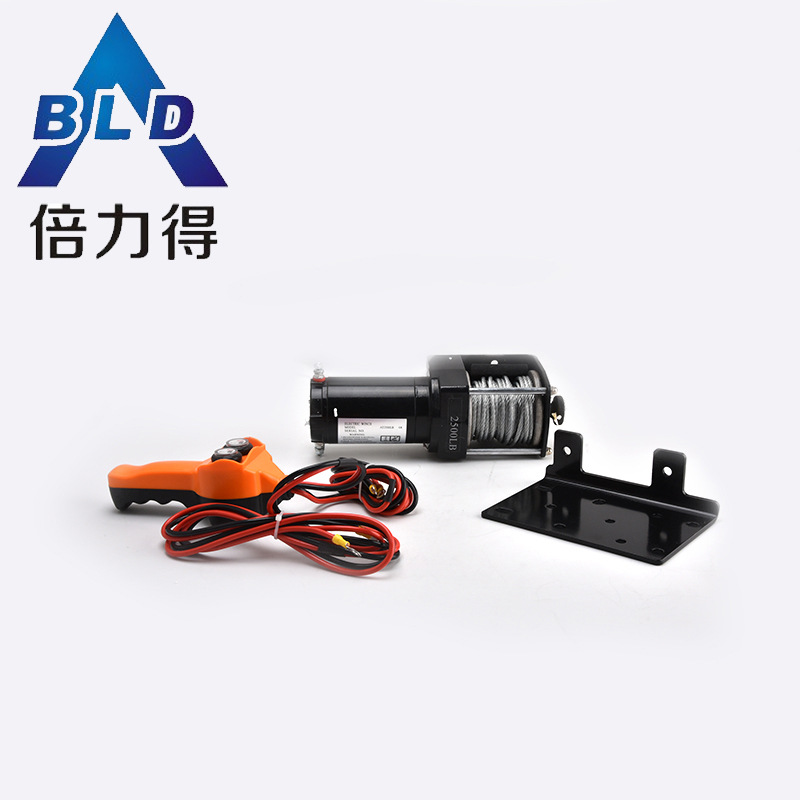

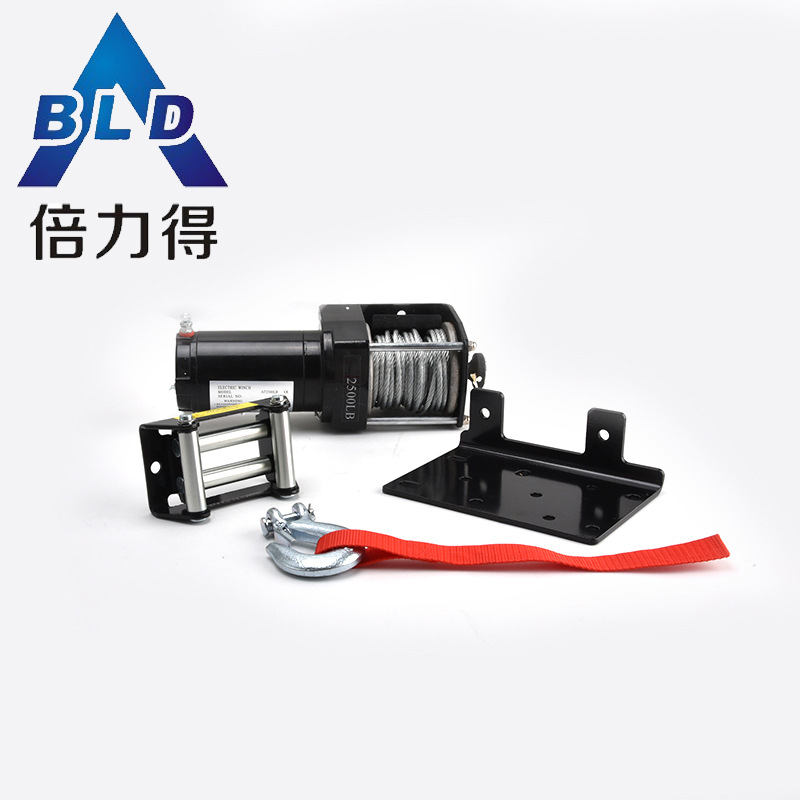

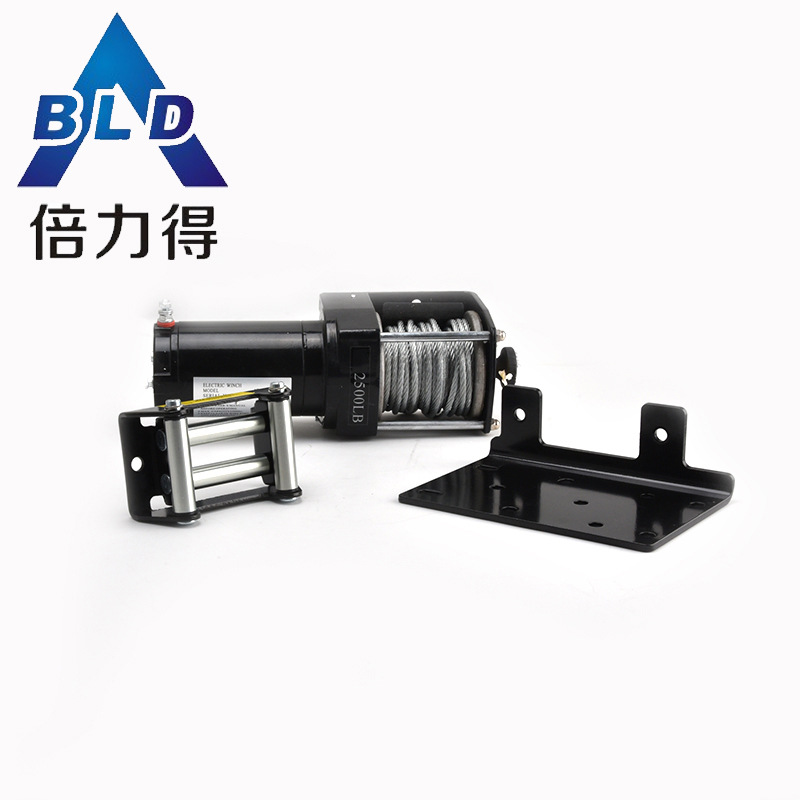

Electric Winch 2500lbs Car Tools 12V24V Traction Rescue Tools Electric Winch Wire Rope

Product Properties

Place of origin :Taizhou, Zhejiang    Whether imported or not:NO

Order No. : BLD-2500                        Brand: BLD

Model: BLD-2500                              Item No. BLD-2500

Motor : 12V/24V                                Processing customization no

Voltage : 12V/24V                              Pulling force 2500lbs

Type : electric

Overall Dimension: 355 x 265 x 170mm  Rope length : 10.5(m)

Weight: 9(kg)                                     Motor power : 12V/24V

Working load : 2500lbs                     Tooth speed ratio : 150:1

Breaking strength : 2500lbs              Wire rope diameter and length : Ø4.8mmx10.5m

Size : 355 x 265 x 170mm                  Material : steel

Net weight 9KGWhether cross-border export exclusive source No

Description

Rated line pull:2500lbs(1133kgs) single line
Motor:Permanent magnet,0.9kw/1.2hp
Gear reduction ratio:150：1
Gear train:Differential Planetary
Cable (Dia x L):Ø4.8mmx10.5m
Drum size (Dia x L):Ø1.24”(31.5mm) x2.8”(72mm)
Braking action:Automatic In-The-Drum
Overall dimensions(Lx Wx H):99mm X100mm X105mm
Mounting bolt pattern:76mm, Ø8.5
Weight:N.W.8kg G.W.9kg
Packing size:355 x 265 x 170mm 1PC/CTN
