Bld Brand Mini Winch Manual Winch Hand Crank Boat 500 Lbs With Webbing KW500

bld brand Mini Winch Manual Winch Hand Crank Boat 500 lbs with Webbing KW500

Properties

Place of origin :Taizhou, Zhejiang

Whether imported or not:no

Order No. :KW500

Brand :BLD

Model :KW500

Item No. :KW500

Motor :manual

Processing customization :no

Voltage :no voltage

Pulling force: 500 lbs

Type :manual

Overall Dimension:19X11.5X13.8

Rope length :25mmX3m (m)

Weight:27(kg)

Motor power :no motor

Working load: 500lbs

Tooth speed ratio :4.1:1

Breaking strength :500kg (1050lbs)

Wire rope diameter and length:25mmX3m

Size:25mmX3m

Material :A36 steel

Net weight :23KG

Whether cross-border export exclusive source of goods :No

Description

Adopting high quality steel and exquisite craftsmanship, the gears work well together.

The high temperature quenching and heat treatment bring the gear set and pawl toughness and wear resistance, perfect plating process brings the surface of the silky smooth touch, the achievement of the top quality of Belite winch.

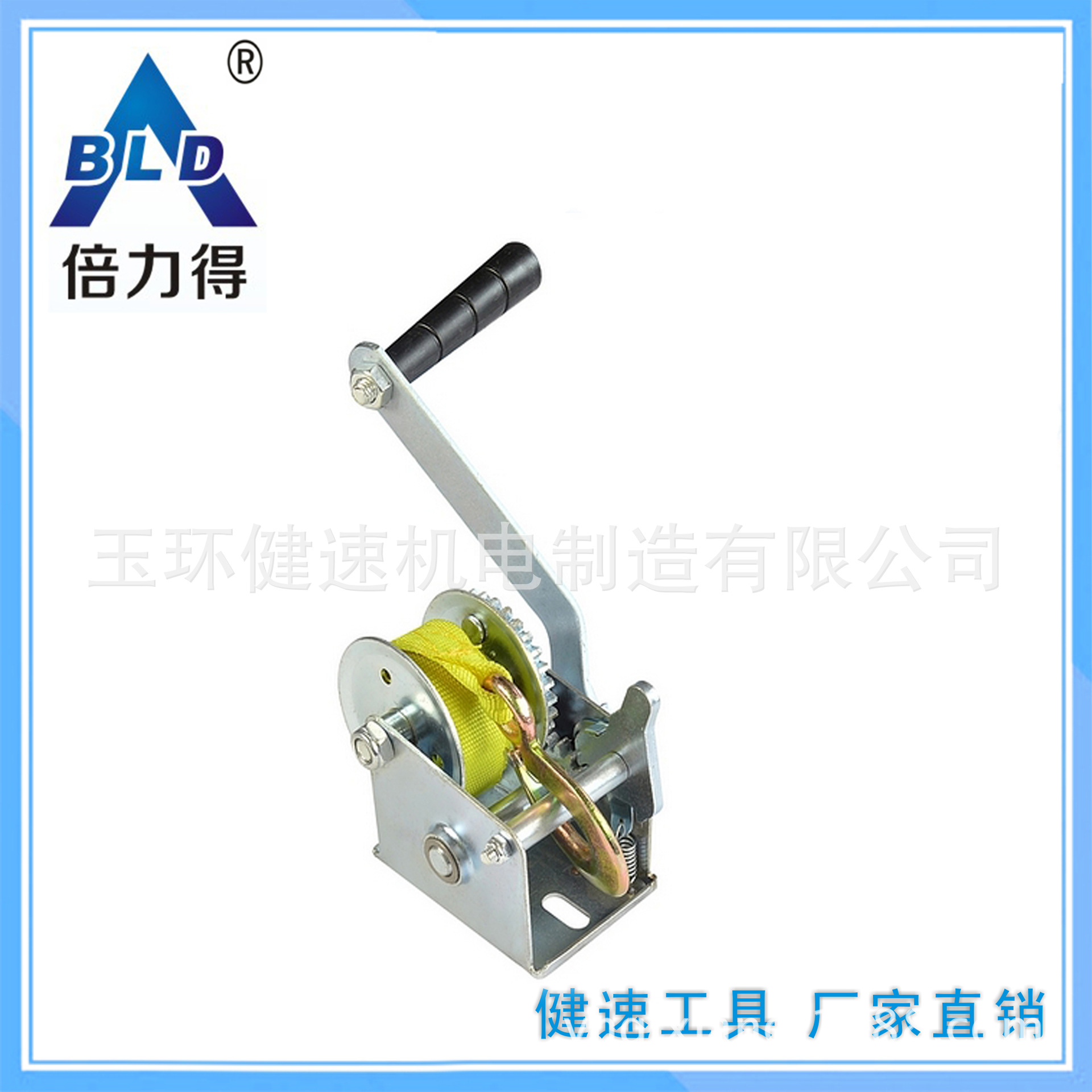

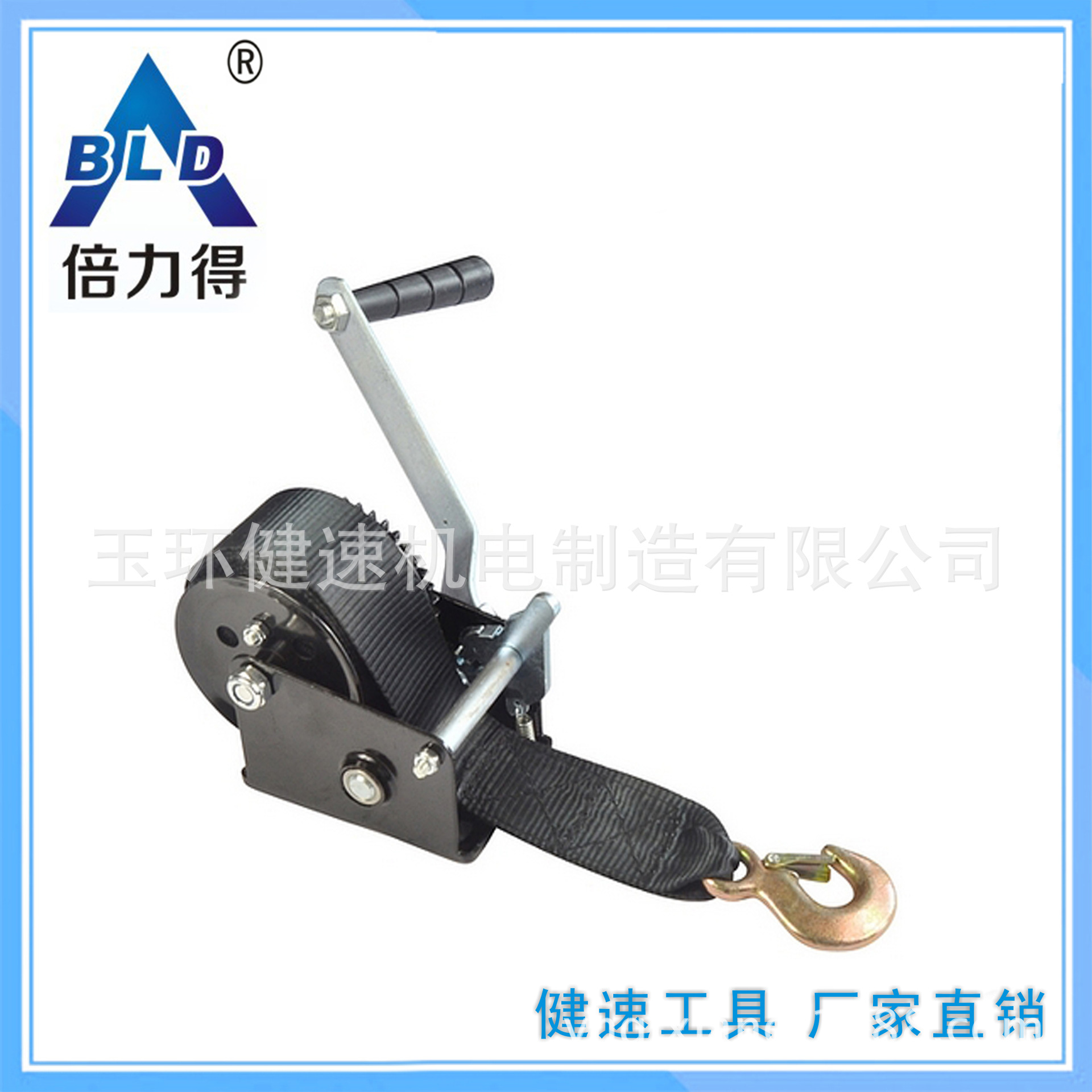

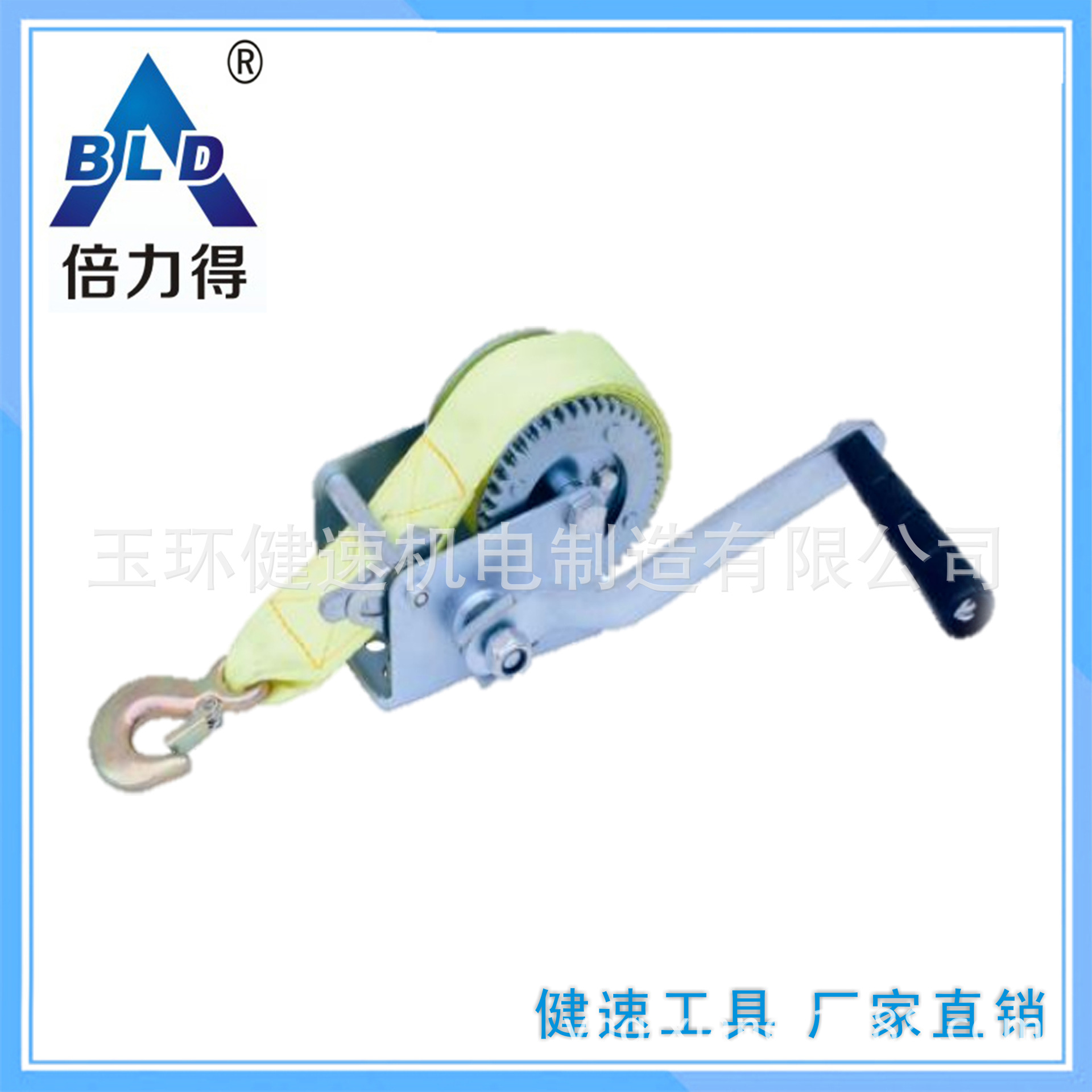

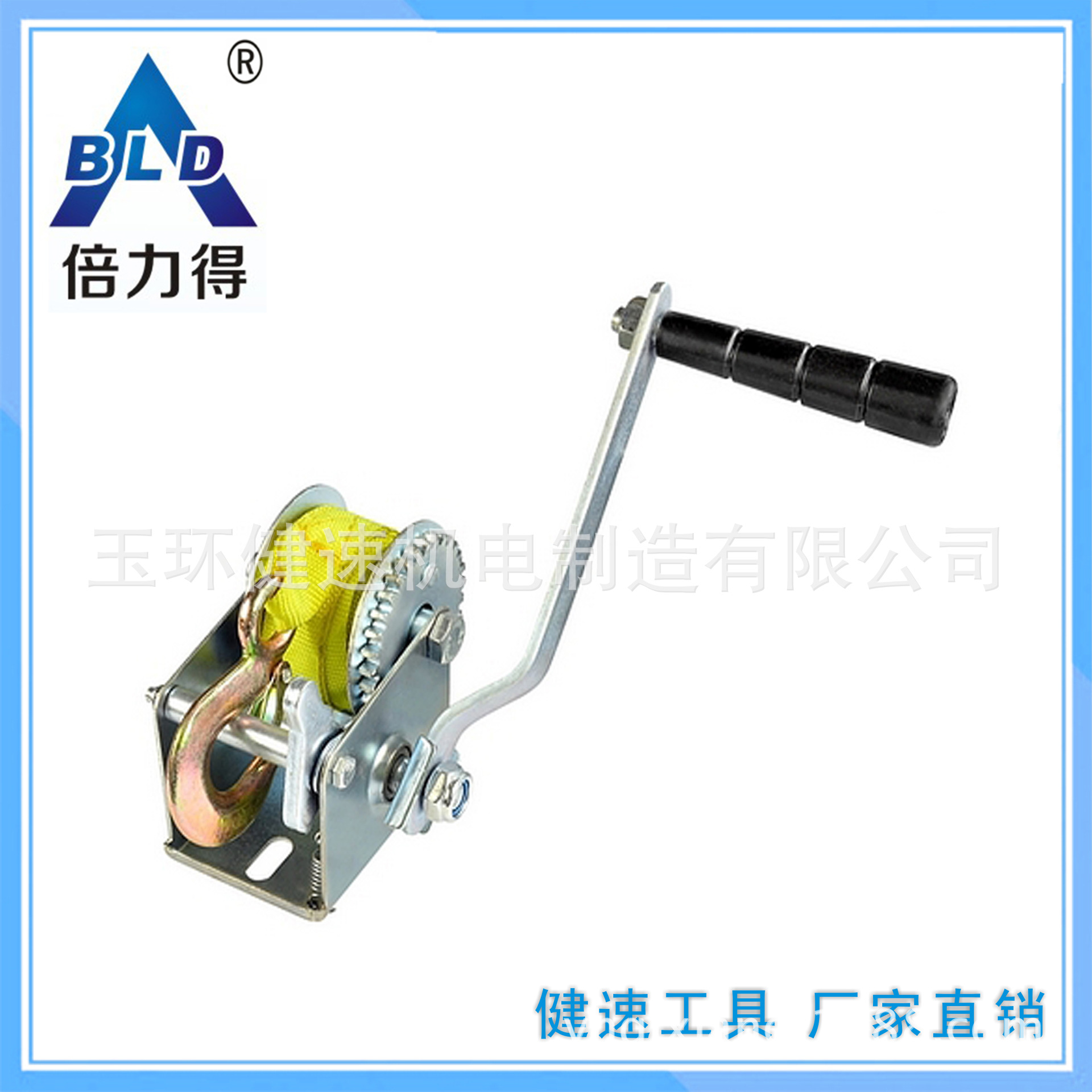

The actual product is shown below

绞盘底部的固定口，可以用螺栓固定在任意地方进行牵引任务

棘爪和齿轮的咬合和刹车

抽出绞绳的方法




BLD 倍力得 绞盘 玉环健速优质品牌

Winch use precautions:

1, winch is strictly prohibited to carry people!

2, winch is strictly prohibited overload use!

3, winch work is prohibited contact with the wire rope, drum and gear disk. At work, it is best to cover the wire rope on a piece of light fabric, in order to prevent the sudden breakage of the wire rope because of the huge retraction force injuries.

4、When working, at least 5 turns of wire rope should be guaranteed on the drum to keep the wire rope from slipping.

5、When working, we should try to keep the wire rope perpendicular to the drum to prevent the wire rope from wearing out at the edge of the hub!

6、When pulling a heavy load, it is recommended to use a movable pulley to relieve the hand cranking force!
